Manufacturing context
Lianchuang Circuits lists double-sided copper-based PCB — catalogue example in its official manufacturing documentation. Base material: Copper-based board. Board thickness: 2.0 mm. Line / space: 20 / 20 mil. Published hole size: 0.8 mm; finished-hole basis requires confirmation. Individual catalogue construction, not the factory-wide minimum line width. The example’s hole value is retained as a fact but not a finished-hole filter. Which metal base, dielectric grade, thermal conductivity and isolation requirements apply to this drawing?
Official company source reviewed- Manufacturing focus
- Quick-turn multilayer PCBs · Rogers and mixed laminates · Metal-based constructions
- Published footprint
- Guangdong
- Listing and account
- Independently researched · factory account not claimed

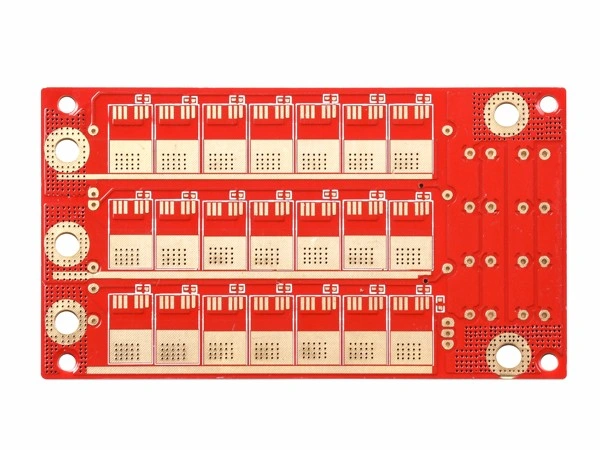

Double-sided copper-based PCB — catalogue example
Manufacturer reportedIndividual catalogue construction, not the factory-wide minimum line width. The example’s hole value is retained as a fact but not a finished-hole filter.
- Layer count
- 2 layers
- Line / space
- 0.508 / 0.508 mm
- Finished hole
- Not confirmed
- Impedance
- Not disclosed for this profile
| Base material | Copper-based board |
|---|---|
| Board thickness | 2.0 mm |
| Line / space | 20 / 20 mil |
| Published hole size | 0.8 mm; finished-hole basis requires confirmation |
| Technical source | lcpcb.cn · Manufacturer specification |
These are separate published limits, not a promise that every combination is manufacturable. Unknown values are excluded from numerical filtering.
Know what has been checked.
The website review establishes the source of a statement. Independent UL ownership, equipment and material checks are tracked separately.
UL ownership
Not independently verifiedNo supporting record has been reviewed for this category.
Qualification request: Legal holder, manufacturing address and current UL recognition.
Equipment & in-house processing
Not independently verifiedNo supporting record has been reviewed for this category.
Qualification request: Machine inventory, location and evidence that the relevant process runs at the quoted site.
Material traceability
Not independently verifiedNo supporting record has been reviewed for this category.
Qualification request: Laminate grade, supplier documentation and traceable production-batch records.
Sources & review record.
Reviewed 2026-09-21. Manufacturer pages can change; confirm the current revision when requesting a quotation.
- Lianchuang Circuits — product and technical documentationhttp://www.lcpcb.cn/?m=home&c=View&a=index&aid=144Source checked 2026-09-21Official website
- Lianchuang Circuits — company informationhttp://www.lcpcb.cn/Source checked 2026-09-21Official website
- Lianchuang Circuits — company informationhttp://www.lcpcb.cn/index.php?m=home&c=Lists&a=index&tid=100Source checked 2026-09-21Official website
Company names and images identify the source manufacturer. Listing does not imply endorsement, partnership, account participation or completion of a factory audit.
Make the first technical conversation useful.
Which metal base, dielectric grade, thermal conductivity and isolation requirements apply to this drawing?
Attach the manufacturing brief
Layer stack-up, finished dimensions, copper weights, laminate grade, quantity and delivery destination.
Define acceptance
Finished-hole tolerance, impedance targets, coupon requirements, surface finish and permitted process substitutions.
Confirm the recipient
Agree the manufacturing legal entity, confidentiality terms and approved site before sharing production files.
