Manufacturing context
Honglian Circuits lists six-layer optical-module PCB — catalogue example in its official manufacturing documentation. Laminate: Panasonic R-5775G, identified as M6 on source. Layer count: 6. Finish: ENEPIG. Special construction: Resin-filled and capped vias; impedance-controlled design. Specific optical-module product example from the official catalogue. Its line/space figures are not advertised as factory-wide limits. The 0.5 mm drilling figure is not a finished-hole guarantee. Which stack-up, laminate grade, finished copper and acceptance criteria will be used for this board?
Official company source reviewed- Manufacturing focus
- Quick-turn multilayer boards · RF and mixed-laminate PCBs · Optical-module circuits
- Published footprint
- Guangdong
- Listing and account
- Independently researched · factory account not claimed

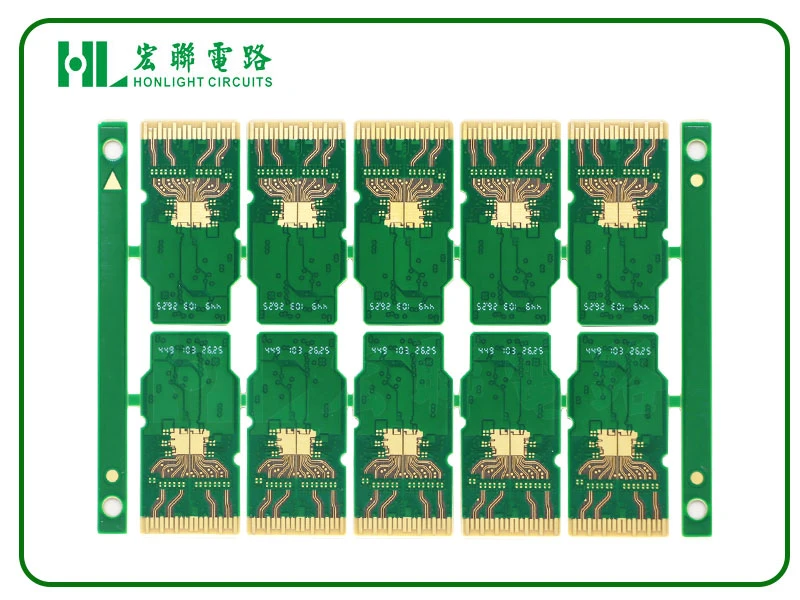

Six-layer optical-module PCB — catalogue example
Manufacturer reportedSpecific optical-module product example from the official catalogue. Its line/space figures are not advertised as factory-wide limits. The 0.5 mm drilling figure is not a finished-hole guarantee.
- Layer count
- 6 layers
- Line / space
- 0.1 / 0.07 mm
- Finished hole
- Not confirmed
- Impedance
- Not disclosed for this profile
| Laminate | Panasonic R-5775G, identified as M6 on source |
|---|---|
| Layer count | 6 |
| Finish | ENEPIG |
| Special construction | Resin-filled and capped vias; impedance-controlled design |
| Technical source | pcb-hl.com · Manufacturer specification |
These are separate published limits, not a promise that every combination is manufacturable. Unknown values are excluded from numerical filtering.
Know what has been checked.
The website review establishes the source of a statement. Independent UL ownership, equipment and material checks are tracked separately.
UL ownership
Not independently verifiedNo supporting record has been reviewed for this category.
Qualification request: Legal holder, manufacturing address and current UL recognition.
Equipment & in-house processing
Not independently verifiedNo supporting record has been reviewed for this category.
Qualification request: Machine inventory, location and evidence that the relevant process runs at the quoted site.
Material traceability
Not independently verifiedNo supporting record has been reviewed for this category.
Qualification request: Laminate grade, supplier documentation and traceable production-batch records.
Sources & review record.
Reviewed 2026-09-21. Manufacturer pages can change; confirm the current revision when requesting a quotation.
- Honglian Circuits — product and technical documentationhttps://www.pcb-hl.com/Source checked 2026-09-21Official website
- Honglian Circuits — company informationhttps://www.pcb-hl.com/product/hdixlb.htmlSource checked 2026-09-21Official website
Company names and images identify the source manufacturer. Listing does not imply endorsement, partnership, account participation or completion of a factory audit.
Make the first technical conversation useful.
Which stack-up, laminate grade, finished copper and acceptance criteria will be used for this board?
Attach the manufacturing brief
Layer stack-up, finished dimensions, copper weights, laminate grade, quantity and delivery destination.
Define acceptance
Finished-hole tolerance, impedance targets, coupon requirements, surface finish and permitted process substitutions.
Confirm the recipient
Agree the manufacturing legal entity, confidentiality terms and approved site before sharing production files.
