Manufacturing context
Reyhelm Electronics lists 8-layer FR-4 PCB example in its official manufacturing documentation. Layer count: 8. Material family: FR-4. Construction: Rigid multilayer PCB. Specific catalogue example. FR-4 is a material family, not a verified laminate grade or batch traceability record. Which stack-up, laminate grade, finished copper and acceptance criteria will be used for this board?
Official company source reviewed- Manufacturing focus
- FR-4 multilayers · Rigid-flex circuits · Aluminum-base boards
- Published footprint
- Jiangxi
- Listing and account
- Independently researched · factory account not claimed
8-layer FR-4 PCB example

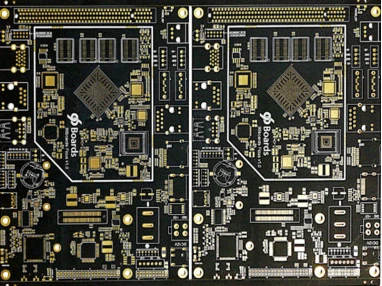

Manufacturer reportedSpecific catalogue example. FR-4 is a material family, not a verified laminate grade or batch traceability record.
- Layer count
- 8 layers
- Line / space
- Not disclosed for this profile
- Finished hole
- Not confirmed
- Impedance
- Not disclosed for this profile
| Layer count | 8 |
|---|---|
| Material family | FR-4 |
| Construction | Rigid multilayer PCB |
| Technical source | reyhelm.com · Manufacturer specification |
These are separate published limits, not a promise that every combination is manufacturable. Unknown values are excluded from numerical filtering.
