Choose the deliverable before comparing the dimensions.

Jiangsu Xiehe Electronic Co.,Ltd. (江苏协和电子股份有限公司) manufactures rigid and flexible printed circuits, high-frequency boards and surface-mount assemblies. Its current official catalogue connects these routes to automotive electronics, communications and energy storage. The contact address is 4 Tangtou Road, Cuibei Industrial Park, Henglin Town, Changzhou, Jiangsu.

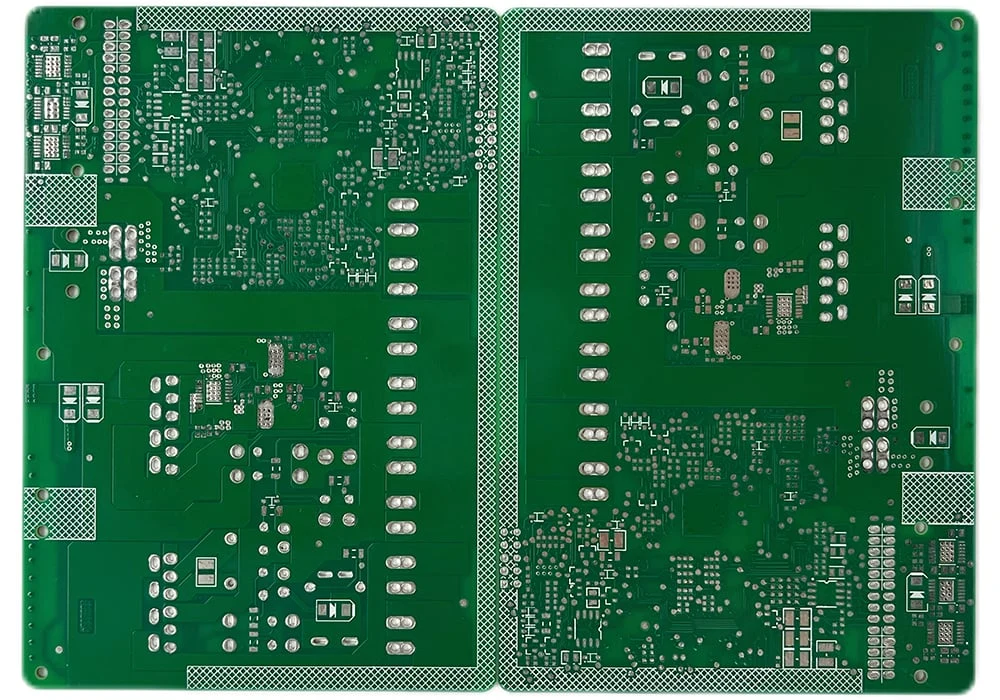

A controller PCB, a lighting flex and an assembled energy-storage flex have different release requirements. The four original examples below retain their own dimensions, substrate descriptions and application labels. Their photographs show catalogue examples; they do not specify the construction of a future order.

The issuer’s 2025 annual report identifies the same legal entity and stock code 605258. It describes a medium/small-batch, many-variety PCB business using BOM selection and process cards. It also records the cancellation of the Nanjing subsidiary in December 2025. Nanjing is therefore not retained as a current operating site in this profile.

Release the stack, copper and mechanical drawing together.

Layer count

10

Substrate label

FR4

Published size row

302 × 192 × 3.2 mm

Separate board-thickness row

0.45 mm

Finished outer copper

2 oz

Application label

NEV electric control

Resolve the two thickness values before quotation.

The size row includes 3.2 mm, while the separate board-thickness row says 0.45 mm. The page does not explain this difference. Ask for the revision-controlled stack and finished thickness with tolerance; neither value is silently corrected here.

For the actual controller, mark high-current nets, thermal interfaces, creepage/clearance requirements and copper acceptance on the fabrication drawing. The two-ounce value is explicitly labelled finished outer copper. It does not establish inner copper, permissible current, trace/space, via structure or impedance control.

Select controller PCB →

Keep the lighting circuit and the storage assembly in separate specifications.

Double-sided lighting FPC

Layers

2

Size as printed

151.12 × 123.84 × 2 mm

Substrate wording

Double-sided, adhesive-clad substrate

The detail has no separate finished-thickness row. Confirm what the third size dimension represents, and whether the stated size refers to the delivered circuit or its manufacturing panel. It is not used as a universal bare-flex thickness.

Provide the installed shape, contact zones, coverlay openings, stiffeners and bending conditions. Agree the laminate construction, copper and finish rather than substituting an assumed polyimide grade for the website’s substrate wording. Define whether bending occurs once during installation or repeatedly in service.

Select lighting FPC →

Long energy-storage FPC assembly

Published size

957.07 × 51.1 mm

Deliverable label

FPCBA

Application

Power-station energy storage

This entry does not publish a layer count, substrate grade, copper thickness or operating voltage. Its two-dimensional size should not be combined with the lighting flex’s construction. Ask for the assembly drawing, connector pinout, installed orientation and mechanical references across the long interface.

Agree BOM ownership, approved substitutions, component traceability, joining sequence and supported reflow exposure. Define the fixture, netlist and functional-test coverage, plus which party releases the tested assembly. The application label alone does not specify battery-sensing performance or safety qualification.

Select storage FPCBA →

A PTFE power divider needs an RF definition, not just a laminate family.

Layers

2

Substrate

PTFE

Size row

1200 × 33.9 × 1 mm

Separate thickness row

0.762 mm

Substrate copper

1 oz

Application

Communication base station

Ask for evidence tied to the selected construction and supplying site.

Fabrication responsibility

Match the quotation, manufacturing site and invoicing entity. Xiehe’s current introduction names Changzhou and related entities, including the Xiangyang operation. The 2025 report discusses a Donghe automotive assembly project; this does not assign every pictured product to that site. Have the factory identify the actual fabrication and assembly route.

Inspection and test

The 2025 annual report describes automated visual inspection with order-specific manual reinspection. It does not provide a current model-and-count inventory for laser drills, LDI or flying probes. Request the equipment and release records relevant to this board, including the agreed electrical-test coverage, dimensional sampling and any construction-specific reliability tests.

Delivery boundary

The website’s service FAQ gives a general 5–25-day range after advance payment, dependent on items and quantity. Treat that as general wording. Agree the actual clock start after engineering approval and material availability, first-article gate, assembly responsibility and shipment date for your order.
