MANUFACTURER DOSSIER

Mingzhenghong Electronics

明正宏电子（益阳）股份有限公司 · Hunan

Official sources reviewed2026-10-07
ENGINEERING READ / MULTILAYER PCB

Start with the production column.

Mingzhenghong's own process table separates volume-production values from limit values. For a repeat order, the useful first question is which complete board construction the factory will quote within the production column. A limit in another cell is not proof that the two can be combined.

Read the manufacturer's process table ↗
VOLUME COLUMN16 layers

The ceiling used in this directory's capability filter.

LIMIT COLUMN30 layers

An exceptional published limit. Ask for the eligible stack-up, order volume and production site.

01 / MANUFACTURER & SITE

Who would make the board?

The company's site identifies 明正宏电子（益阳）股份有限公司 and describes double-sided, multilayer, HDI and related PCB production in Hunan. Its company page also distinguishes Hunan production phases from Shenzhen and Jiangmen processing operations. That distinction matters when the quotation needs a named manufacturing site and a defined process owner.

The Yiyang Ecology and Environment Bureau's August 2026 project notice ↗ separately names this legal entity as the developer of a proposed high-performance PCB manufacturing-base project in Ziyang District. It corroborates the entity and project location; it does not verify product quality, current output or that the proposed project is operating.

02 / PROCESS WINDOW

Read each number with its column.

These values come from the manufacturer's published process table. They are a starting point for engineering review, not a guaranteed buildable combination.

ParameterVolumeLimit
Maximum layer count1630
Working panel, double-sided / multilayer622 × 726 mm622 × 780 mm
Minimum dielectric thickness0.075 mm0.05 mm
PTH finished-hole tolerance±0.075 mm±0.05 mm

Where another limit changes the conversation

Fine routingThe table puts 3/3 mil line/space in its volume column and 2.5/2.5 mil in its limit column. Ask for the actual copper weight and layer position before assuming a fine trace is a standard build.
HDI structureIt lists 2+N+2 for volume and 3+N+3 at the limit. Supply a via-stack drawing and ask whether the intended stack-up, layer count and order volume are reviewed together.
Controlled impedanceThe table varies tolerance by impedance range and column; for example, its >100 Ω row shows ±10% volume versus ±5% limit. Quote the target nets, reference stack-up and coupon or test plan, not “±5%” on its own.

Two values need a definition before you send Gerbers

The same table has a separate “minimum hole diameter” row, but does not say clearly whether that is a drill or finished-hole size. It also lists line/space, impedance and HDI values under different columns. Ask the engineer to sign off on the entire layer stack, hole definition and impedance condition on one manufacturability review.

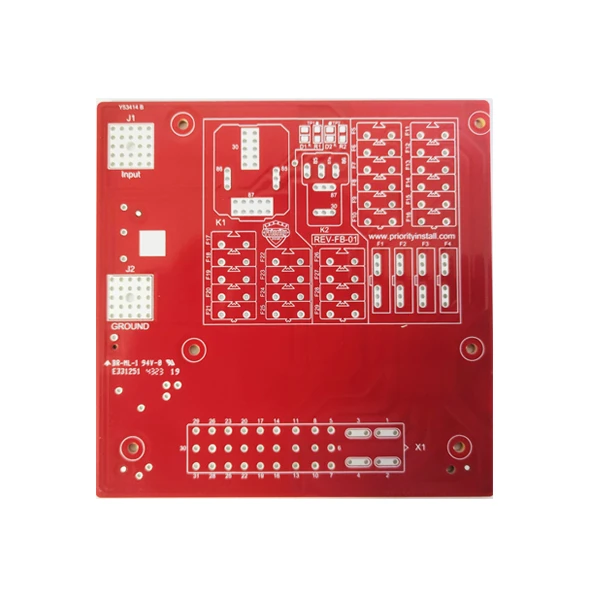

Board image from Mingzhenghong's official product catalogue
Official catalogue image, linked to the manufacturer's high-frequency and high-speed PCB section ↗. It illustrates a product family, not a tested 30-layer construction.
03 / SEND A USEFUL RFQ

Ask for a production-capable stack-up.

For a board near any published limit, send the files as a single build case and ask the manufacturer to return a marked-up DFM response. These questions are editorial sourcing guidance based on the table, not claims of an existing test report.

  1. Which column governs this order?State annual volume, lot size, layer count, dimensions and preferred factory site. Ask whether the complete stack-up fits regular production or needs a limit-process review.
  2. Which hole dimension is being quoted?Separate drill size from finished plated hole, and give hole tolerance, via structure and any backdrilling requirement.
  3. How will performance be accepted?Specify laminate grade, finished copper, impedance target, coupon/test method and whether process substitutions require approval.
04 / SOURCE TRAIL

Original material and independent context

Research checked on 7 October 2026. Manufacturer process values remain manufacturer statements. The government notice concerns a project and legal entity, not a factory audit or approval of these specifications.

  1. MANUFACTURER · PROCESSProduction and limit capability table ↗
  2. MANUFACTURER · IDENTITY & SITESCompany history and Hunan / processing-site descriptions ↗
  3. MANUFACTURER · PRODUCT IMAGEOfficial product catalogue ↗
  4. GOVERNMENT · PROJECT NOTICEYiyang environmental-review acceptance notice, 24 Aug 2026 ↗
